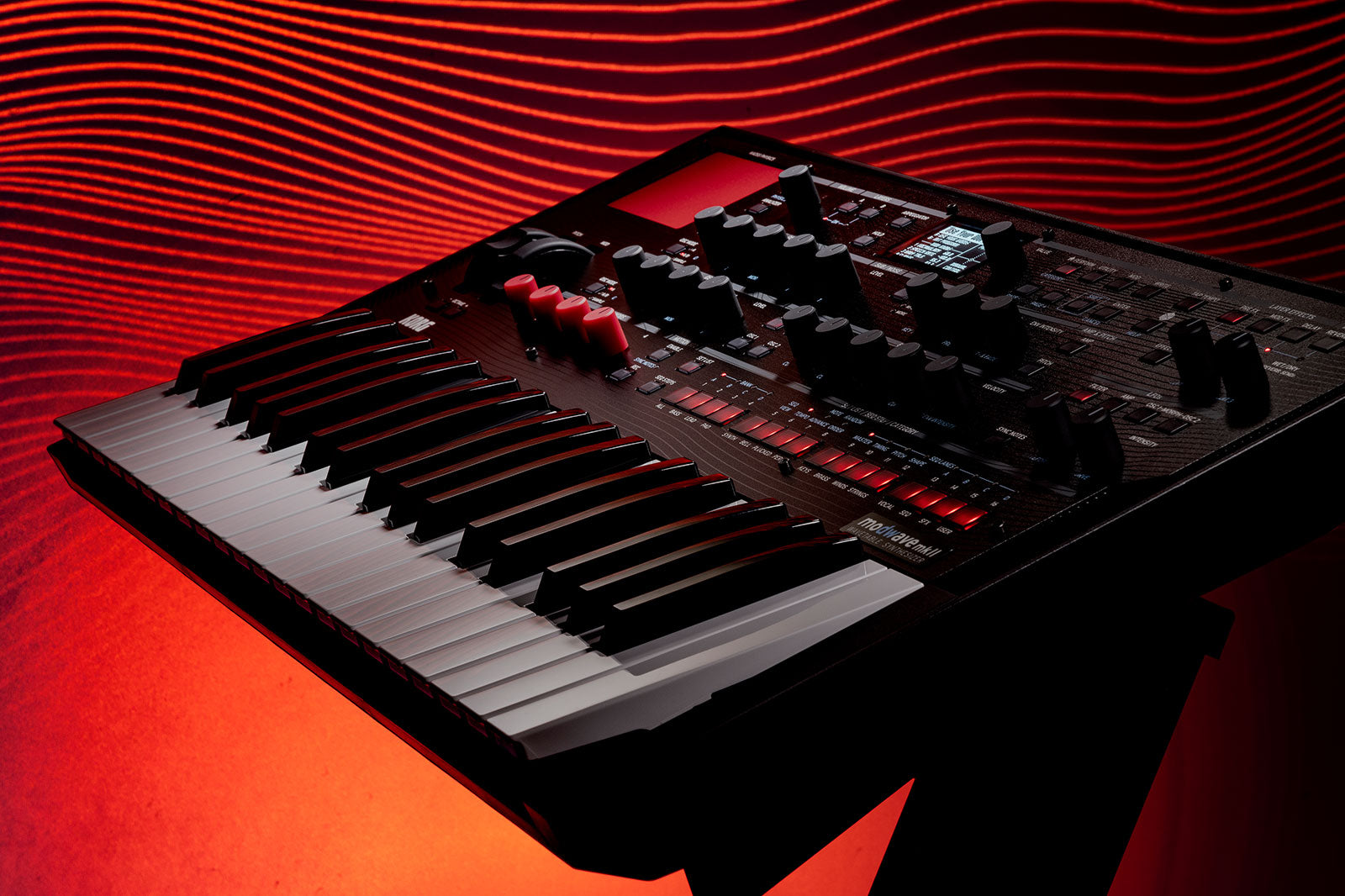

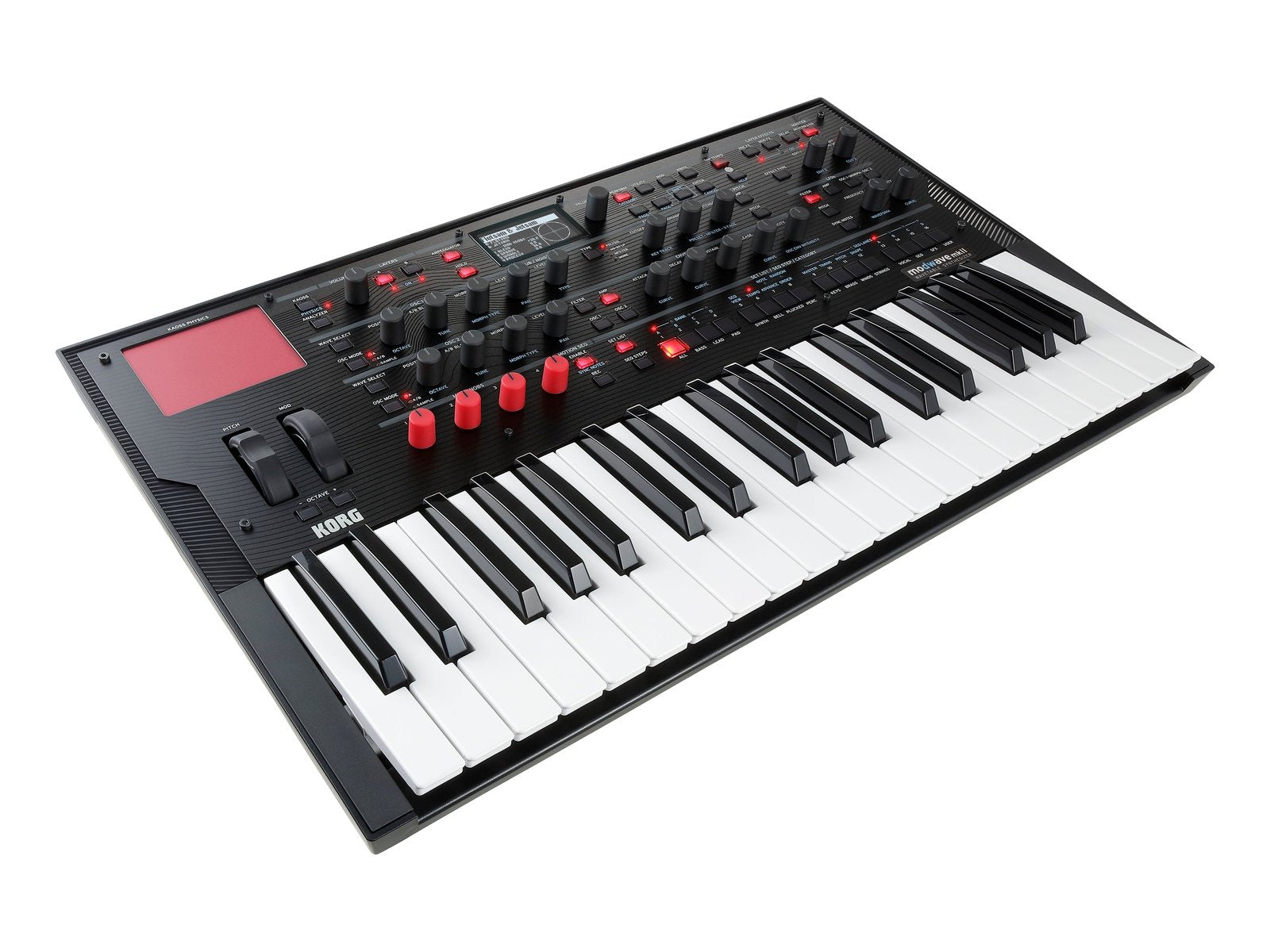

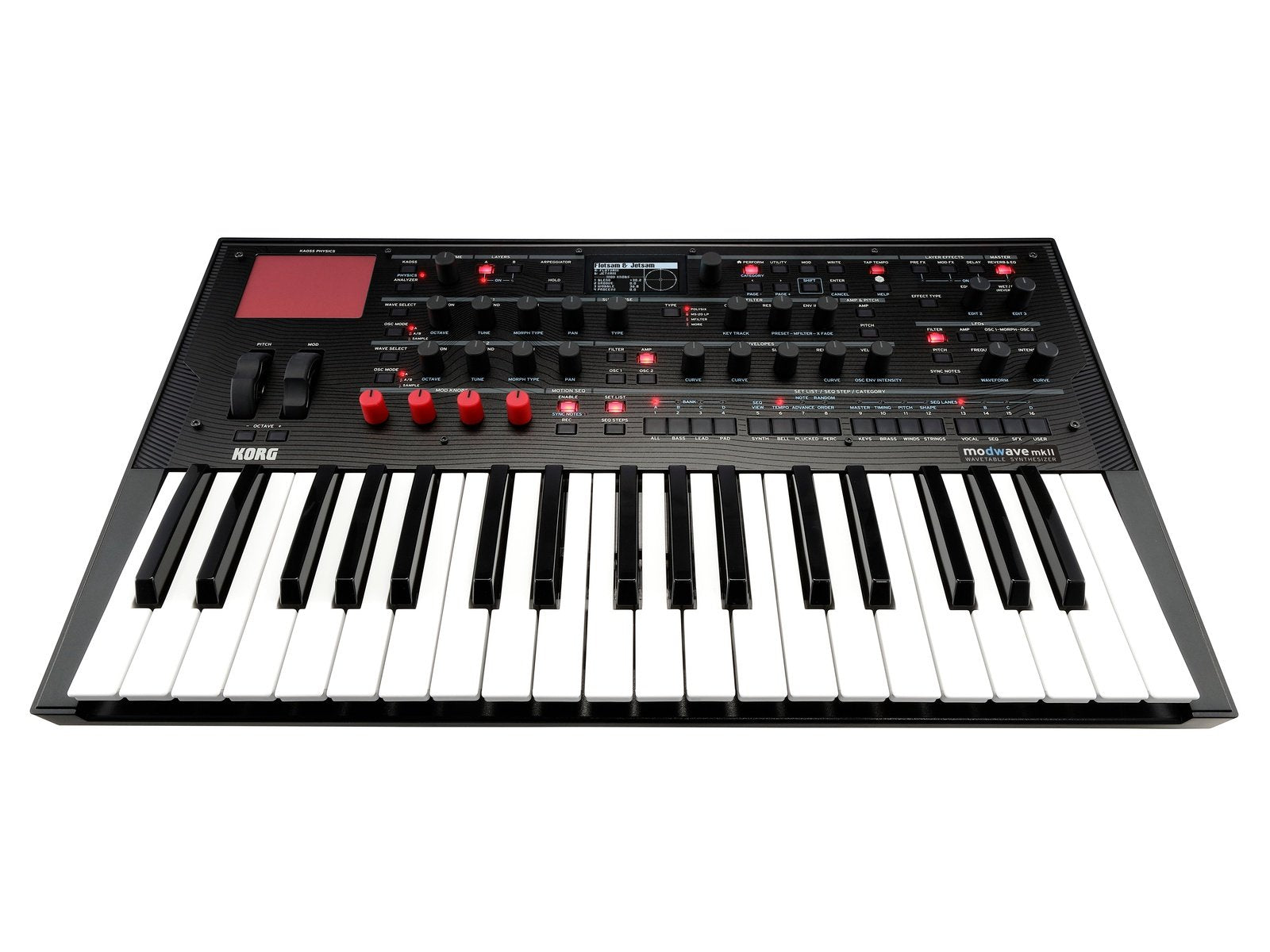

Modwave mkII

Modern monster synth

In 1985, we introduced the DW-8000 – a synth which combined digital wavetables with rich analogue filters to give users sounds which were impossible to create with analogue oscillators.

Modwave builds on the DW legacy, transforming it into a modern monster synth, featuring incredibly deep wavetable oscillators, gorgeous filters, wildly flexible modulation, unmatched polyphony, comprehensive pattern sequencing, and immediately satisfying hands-on control to deliver unique, powerful, and easily customizable sounds and phrases.

Over 200 factory wavetables each contain up to 64 waveforms. 30+ Modifiers can be used to change their basic character, and 13 Morph Types to process them in real-time. Using the unique, realtime A/B Blend, it’s possible to create new hybrids from any two wavetables.

Expanded possibilities

Modwave can be expanded by importing new wavetables using the free Editor/Librarian software. There are many free and commercial wavetable libraries in the standard Serum format, or you can create your own using the free, cross-platform WaveEdit software (available in a custom version for the Modwave). Wavetables can be layered with samples from the built-in, multi-gigabyte PCM library, or import your own 4 GB of samples using our Sample Builder software.

Each Program has two full-featured wavetable oscillators, plus a sub oscillator/noise generator and any of a dozen stereo filter types, including the aggressive MS-20, sweet Polysix, and the newly enhanced Multi Filter. Animate almost any parameter using the massively flexible modulation system, with four triggerable envelopes, five LFOs, dual mod processors and two key-track generators–plus multi-lane Motion Sequencing and Kaoss Physics.

Even with all that synthesis power, playing up to four simultaneous wavetables per voice in a single Program, the Modwave mkII achieves 60-voice polyphony, incredible for a wavetable synth. Layer two Programs together for double the possibilities.

KAOSS in motion

Modwave introduced two unique new tools for creating dynamic motion: Kaoss Physics and Motion Sequencing 2.0. KaossPhysics combines an x/y Kaoss pad with modulatable game physics to create a responsive, interactive controller that is extraordinarily powerful.

Motion Sequencing 2.0 brings the organic, continuously evolving patterns of the Wavestate Wave Sequencing 2.0 into the world of motion sequencing, including multiple lanes and real-time recording to help you create complex and evolving phrases that other step sequencers cannot.

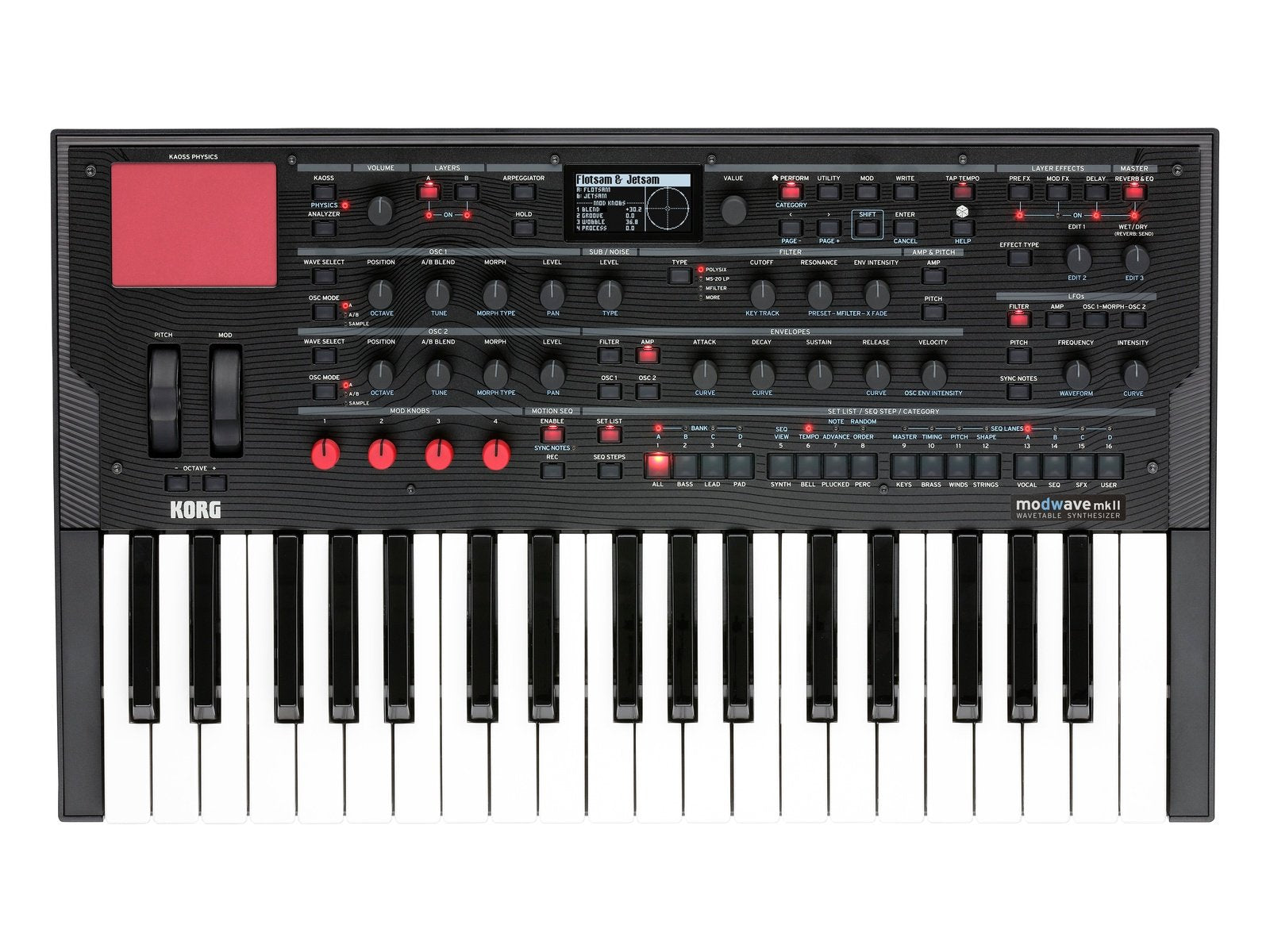

Modwave’s evolved wavetable synthesis delivers its own brand of completely unique sounds and a knob-per-function layout that makes customizing those sounds fast and easy. There are hundreds of preset sounds empowered by this new architecture, organised by front-panel category buttons, and all instantly customizable via the four Mod Knobs. Modwave'sdistinctive wavetable timbres start with aggressive basses & leads, and lush ambient pads which will add a new dimension to your tracks. But that is just the beginning.

Those who want to dig deeper will find an endless source of discovery; with the Modwave’s unique synth architecture, you'll be finding new things for a long, long time. Save as many of your sounds as you like; there's room for thousands more. You can also load your own samples, import wavetables in standard formats, and create your own wavetables using the free WaveEditsoftware.

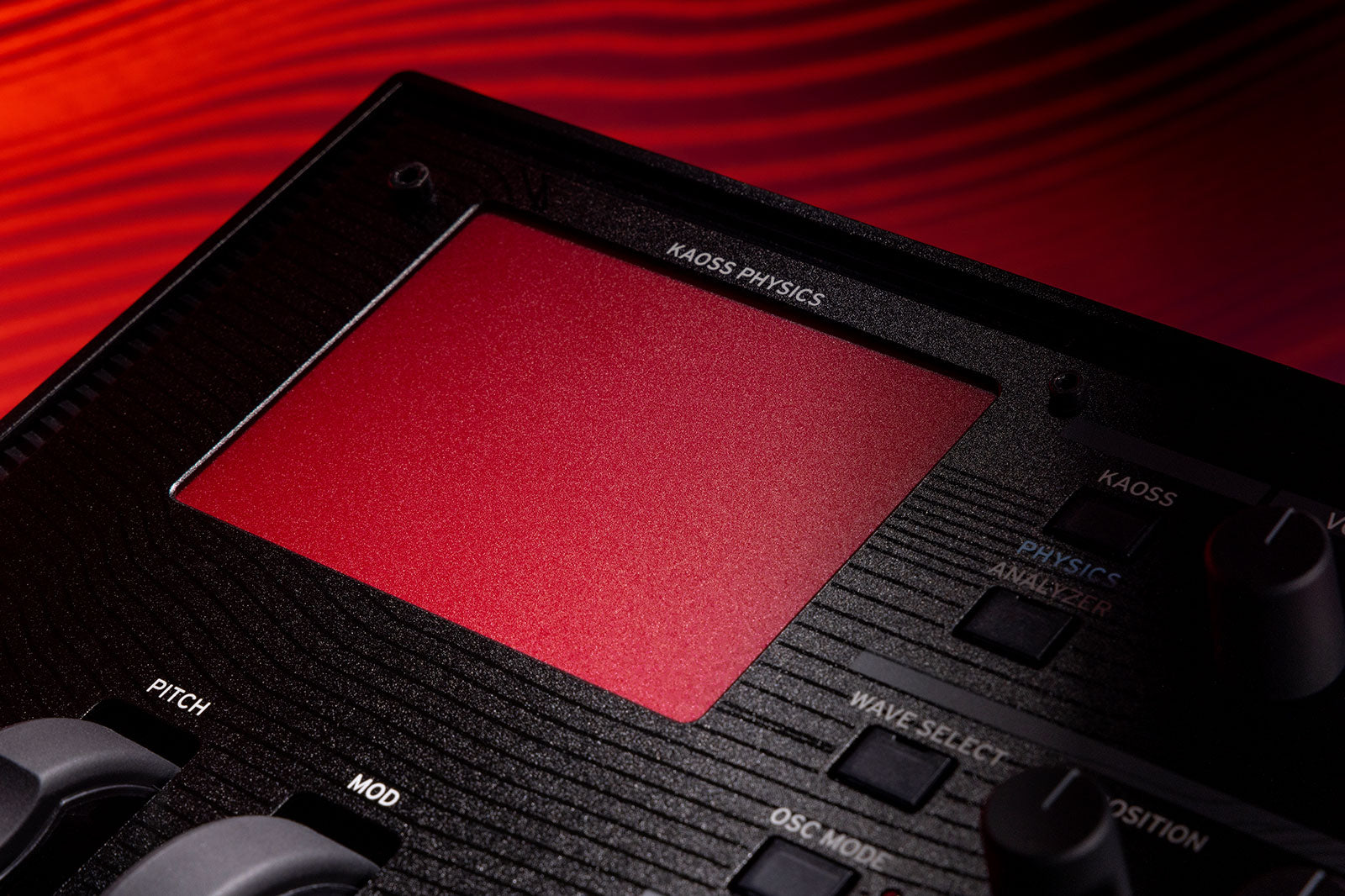

KAOSS Physics

Kaoss Physics models a ball rolling on a surface and bouncing off walls. The surface can tilt in any direction, and a bump with variable height/depth and location attracts or repels the ball. Adjustable friction slows the ball's travel, and adjustable time controls the speed of the entire model. All of these characteristics are modulatable, so you can change them in real-time!

Start the ball by flicking a finger on the x/y pad, or launch the ball automatically using another modulation source. You can even directly control the ball by holding your finger on the pad. The position of the ball produces eight modulation signals, which can be used to control any modulation destination: the X and Y locations, the distance from the centre, the angle relative to the X axis, and separate signals for +/- X and +/- Y.

Walls can slow down the ball, as if they were padded, or accelerate the ball, like bumpers in a pinball machine. The walls can also be removed entirely, so that the surface wraps around to the opposite edges like a vintage arcade game.

The modelled environment can create specific modulation effects. For instance, use a centered bump with negative height so that the modulation values always eventually return to 0. Or, position a bump with positive height on a side or a corner, to push modulation values away from that zone.

The result is an interactive controller that amplifies your physical gestures, transforming them into complex musical results.

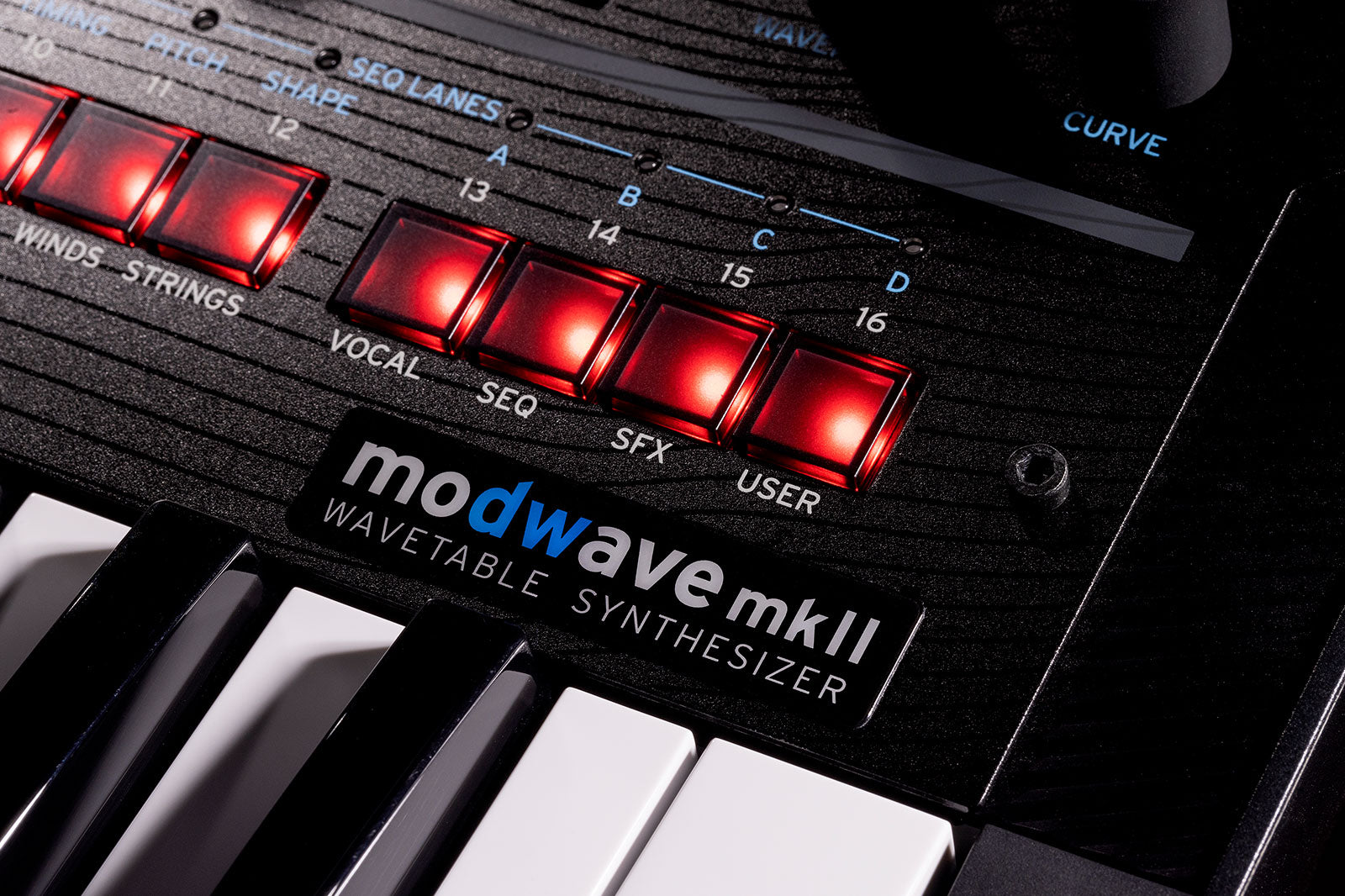

Motion Sequencing 2.0

Motion Sequencing 2.0 is evolved from the Wavestate’s Wave Sequencing 2.0. Timing, Pitch, Shape, and four sets of Step Sequence values are separated into “Lanes,” each with their own loop start and loop end, adding a deeper, more customizable level of phrase and modulation recording.

Every time the sequence moves forward, the individual Lanes are combined to create the output. For instance, a step sequence value may be matched with a different duration, pitch, and shape every time that it plays. You can modulate each Lane’s loop points separately for every note, using velocity, LFOs, envelopes, Mod Knobs, or other controllers. Each note in a chord can be playing something different!

Lanes can also randomize the step order every time they play. Finally, individual steps can be randomly skipped, with a modulatable probability from 0 to 100%. The result is organic, ever-changing sounds that respond to your control. The dual onboard arpeggiators can interact with Motion Sequences for even more possibilities.
